Inserting drawers into your unit is the final step! We hope for a happily ever after, but if that isn't the case, we can troubleshoot and work with you to correct it. Whether drawers won't stay on track, won't open or close smoothly, or appear crooked, too wide or won't fully close, there is usually a simple fix that doesn't require starting over. This article focuses on drawers that won't fit within their frame, which can usually be addressed by one of the following steps:
1. Rearrange the Drawers
- Move the problematic drawer to a different slot. If it fits, the issue is resolved! If it doesn’t fit in any slot, the drawer itself may be the problem, not the frame. If no drawer fits in a particular slot, check the chassis.
2. Ensure the Unit is Square
- Verify that the unit is square and the back panel is properly attached. An improperly squared unit is a common culprit. Diagonal measurements should be within 1/16 of an inch of each other. For more details, refer to this article or these videos.
3. Check the Width of the Openings:
- Measure the width of the openings at both the top and bottom. All same-size drawers should fit into slightly wider, same-size openings. If the measurements don’t match, the bottom may be towed in slightly.
4. Adjust Crooked Drawer Fronts:
-
Most units have an adjustable drawer bracket that attaches the drawer front to the sides. The screw holes in this bracket are oblong, allowing you to move the drawer front up or down without completely removing the screws. Adjust the drawer front to ensure it fits properly within the frame.
Photo Gallery:

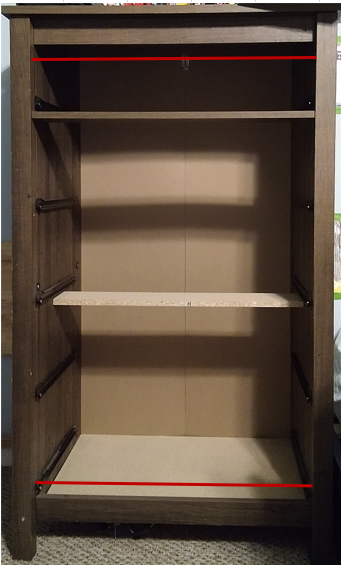

Measuring the Openings:

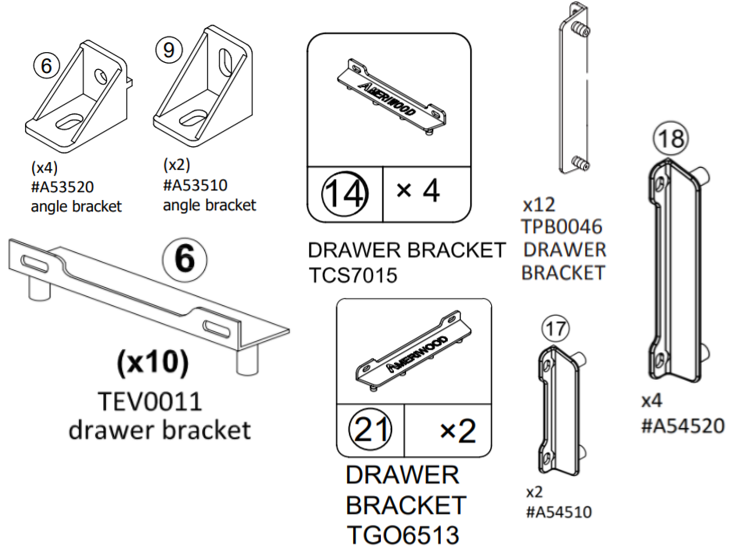

Drawer Brackets:

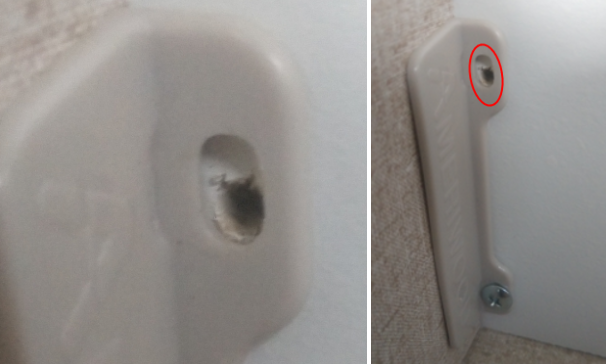

Oblong Screw Holes:
Drawers may be off in one of several ways. They could be too high, too low, or just crooked:
- If the drawer front hits the top of the frame, move the drawer front down.
- If the drawer front hits the bottom of the frame, adjust the drawer front up.
